carbon spoke wheels tri spoke Height 85mm 80mm depth Outer 28mm Inner22 width for T/T road bicycle 700c wavy wheel carbon tubeless ready
- EKW197-3S-F/R-wavy
- T/T,Paypal
- xiamen
- Size: 700C
- Category: carbon road bike wheels
- Type: clincher
- Width: 28mm
- Appearance and Finish: 3K UD Matte Glossy
- Decal: customized
- Warranty: 24 months
- Delivery time:: 10-30 days
- Material: full carbon toray T700
- Internal hole: customized
- Max tire pressure: 120psi
- Standard: EN standard
- Origin: Xiamen City Fujian Province China
- Contact Now

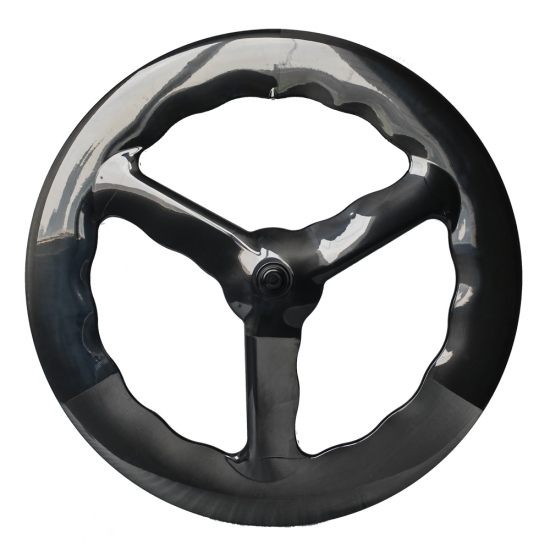

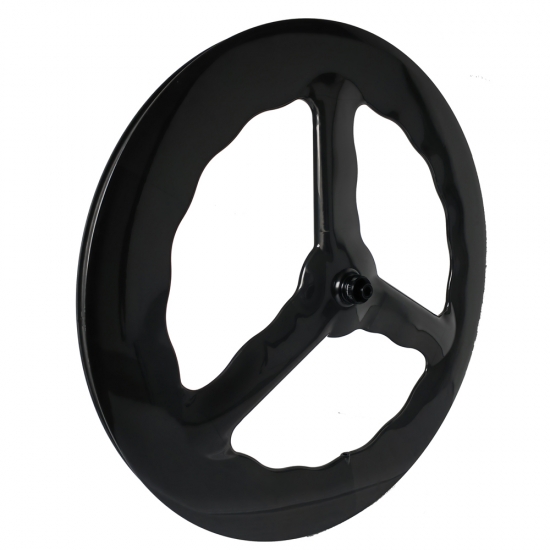

carbon spoke wheels tri spoke Height 85mm 80mm depth Outer 28mm Inner22 width for T/T road bicycle 700c wavy wheel carbon tubeless ready
Specifications |
|
Model |
EKW197-TriSpokes-F/R-700C Wavy |
Size |
80/85 Depth, O.W.28 I.W.22 Width, OD 633mm, Tubeless Ready |
Material |
Toray T700 Carbon |
Finish Appearance |
UD/3k/3k twill in matt/glossy |
Weight |
Front Wheel: 830+/-40g; |
Valve hole Dia. |
6.5mm |

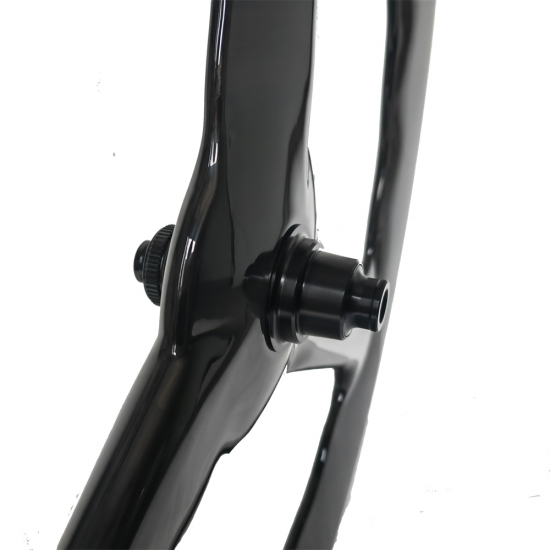

Hub |
Front 12*100, Rear 12*142 center lock, or, customize. |
WHY US
There are a wide range of products for selection, from 12"/ 14"/ 16"/ 18"/ 20"/ 24"/ 26"/ 27.5"/ 29" and 700C.
Molds
1. Owning a mold factory. Speeding up the mold development or modification.
2. Almost 20 years experience on opening new mold of carbon fiber product.
3. Applying 718HH Steel tooling, with hardness HRC32-38. No pin. Self-lock slide. Not easy to clamp yarn. All these ensure the tooling a longer service life.
4. Processing with the large CNC Machine, no tool connection, one-stage process, ensuring mold flatness and roundness within standard.
Molding Machines
1. Non-interference one-to-one separate heating, stable temperature, faster heating speed, each machine comes with a temperature control system.
2. Screw air compressor ensures high pressure and constant pressure molding.
Structure Design
1. The mold slider adopts a three-piece structure, the thickness of the left and the right sides of the bead is uniform, the groove is with standard depth & stable shape, and is almost 0 tolerance.
2. No yarn clamping, no lack of glue, stable roundness & flatness, no need to paint the groove.
3. New technique ensures that the small round bar won't slip off, ensure the stability of structure, no unnecessary cavity and reliable strength.
4. No carbon ring, no EPS, no cover. The shape of preform fixture is close to the mold, the position of the spokes is stable. No unnecessary cavity, no deviation.
20+ Certificate of Utility Model Patent
DIY Decal is welcome!
We can apply water decal on rims according your need, just provide design document to us.
Warranty: 2 year for all our rims/spoke-wheels/disc-wheels.
Please feel free to contact us for more details please.
