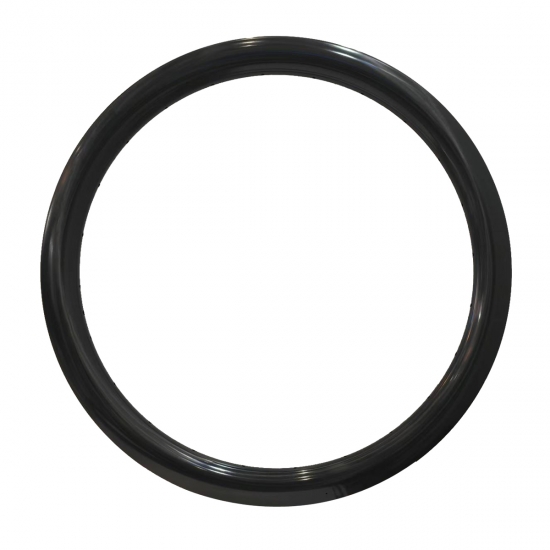

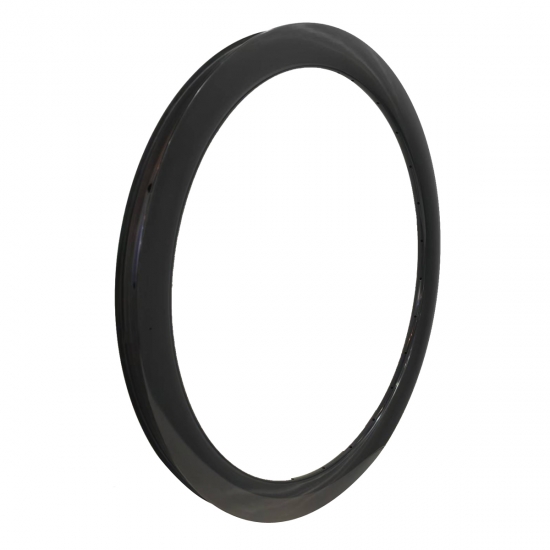

700c Tubeless ready clincher gravel carbon rim depth 46mm width 36mm carbon rims manufacturer factory and supplier carbon wheel manufacturer
- EKW227-R46C-35
- T/T,Paypal
- xiamen
- 1
- Size: 700C
- Category: Carbon Gravel Wheel
- Type: clincher Tubless Ready
- Appearance and Finish: 3K 12K Matte Glossy
- Weight: 440+/-15g 480+/-15g
- Decal: customized
- Warranty: 24 months
- Delivery time:: 10-30 days
- Spoke hole: 16 18 20 21 24 28 32 36
- Internal hole: customized
- Standard: EN standard
- ERD: 552mm
- Origin: Xiamen City Fujian Province China
- Contact Now
700c Tubeless ready clincher gravel carbon rim depth 46mm width 36mm carbon rims manufacturer factory and supplier carbon wheel manufacturer
Specifications |
|
Model |
EKW227-R46C-35 Tubeless Ready |
Size |
700C 46 Depth O.W.35 I.W.30 |
Material |
Toray T700 Carbon+special material |
Finish Appearance |
UD in matt/glossy, customize |
Weight |
Regular 480+/-15g Light 440+/-15g |
Spokes Holes |
16-36# |
ERD |
552mm |
Assembly Hold Dia. |
8.5mm/8.0mm |
Spokes hole Dia. |
4.5mm/2.5mm |
Valve hole Dia. |
6.5mm/8.5mm |
WHY US
There are a wide range of products for selection, from 12"/ 14"/ 16"/ 18"/ 20"/ 24"/ 26"/ 27.5"/ 29"/ 32" and 700C.
Molds
1. Owning a mold factory. Speeding up the mold development or modification.
2. Almost 20 years experience on opening new mold of carbon fiber product.
3. Applying 718HH Steel tooling, with hardness HRC32-38. No pin. Self-lock slide. Not easy to clamp yarn. All these ensure the tooling a longer service life.
4. Processing with the large CNC Machine, no tool connection, one-stage process, ensuring mold flatness and roundness within standard.
Molding Machines
1. Non-interference one-to-one separate heating, stable temperature, faster heating speed, each machine comes with a temperature control system.
2. Screw air compressor ensures high pressure and constant pressure molding.
Structure Design
1. The mold slider adopts a three-piece structure, the thickness of the left and the right sides of the bead is uniform, the groove is with standard depth & stable shape, and is almost 0 tolerance.
2. No yarn clamping, no lack of glue, stable roundness & flatness, no need to paint the groove.
3. New technique ensures that the small round bar won't slip off, ensure the stability of structure, no unnecessary cavity and reliable strength.
4. No carbon ring, no EPS, no cover. The shape of preform fixture is close to the mold, the position of the spokes is stable. No unnecessary cavity, no deviation.
20+ Certificate of Utility Model Patent
DIY Decal is welcome!
We can apply water decal on rims according your need, just provide design document to us.
Warranty: 2 year for all our rims/spoke-wheels/disc-wheels.
Please feel free to contact us for more details please.
